VM−2DT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long−reach HDBaseT input, equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. VM−2DT distributes native HDBaseT signals with up to 4K video resolution, along with their re−extension over HDBaseT.

Key Features:

  • High Performance Distribution - Distributes one native, long-reach HDBaseT signal to three outputs with up to 4K video resolution, along with their re-extension over HDBaseT.
  • Dual-side Extension - Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m long-reach, and even further for lower video resolutions, when deployed mid-way between an AV source and multiple remote acceptors using CAT copper cable.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

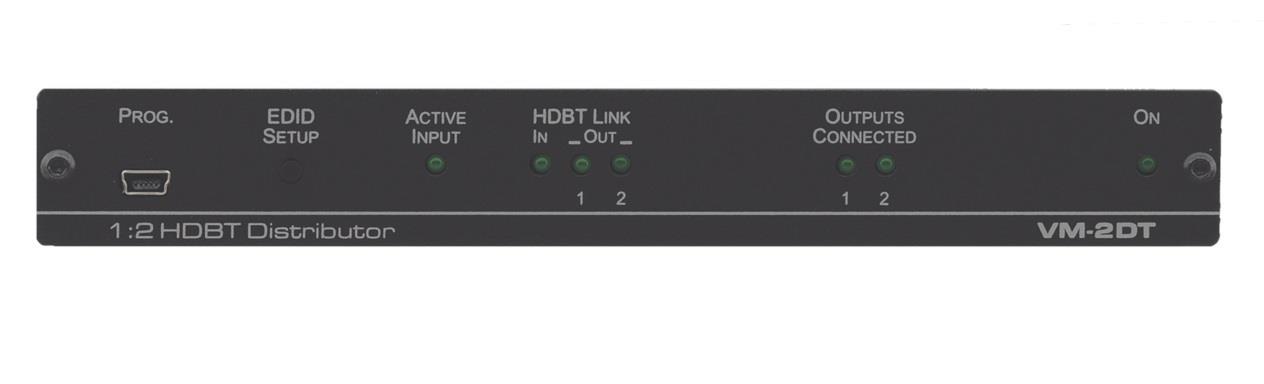

  • LED Indicators - Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.

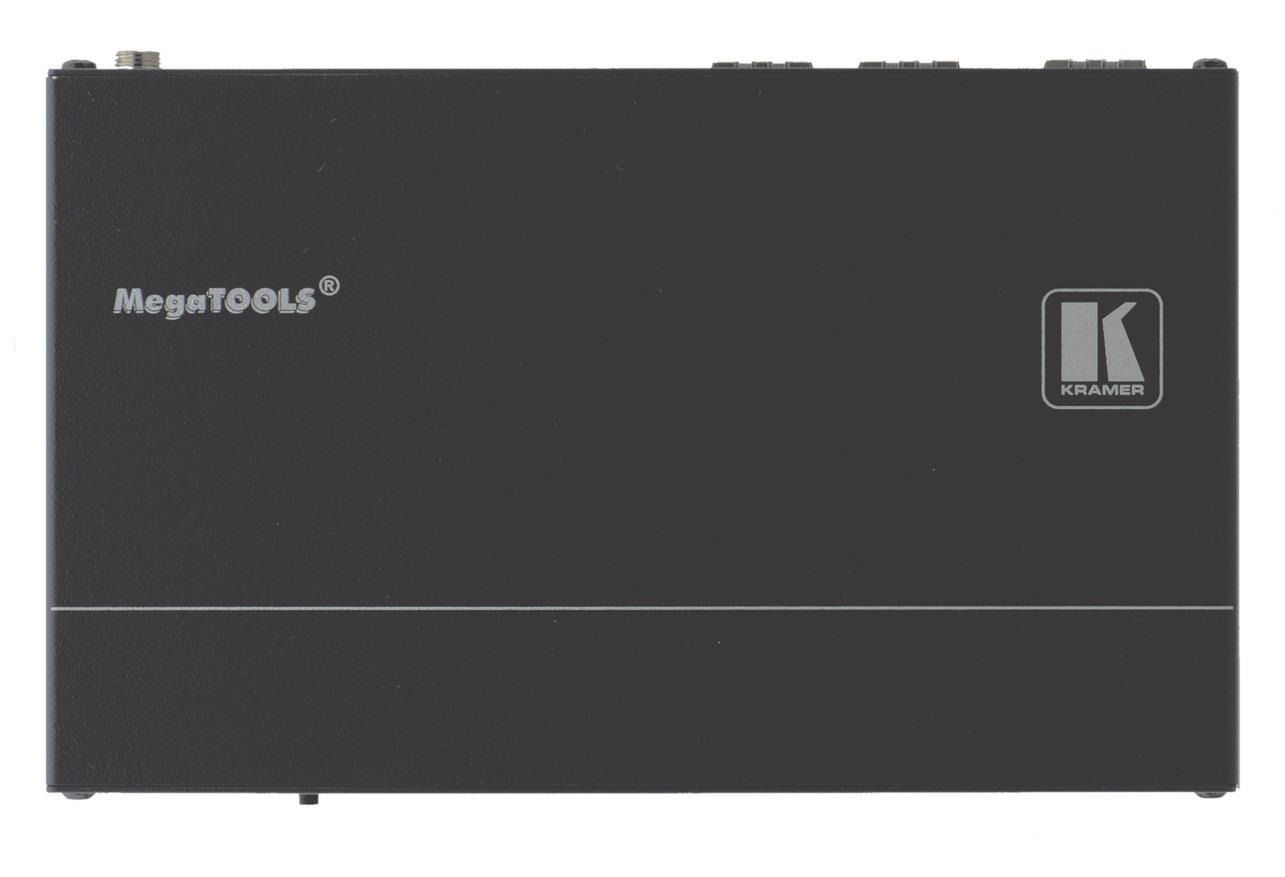

  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.


General

Application
Splitter

Video specification

Resolution max out
3840x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0

Connections

Video inputs
1
Video outputs
2
Video in
HDBaseT (RJ-45)
Video out
HDBaseT (RJ-45) Up to 40m at 4K 60Hz 4:2:0

Functions

Scaler
Ei
USB passthrough
Ei
Control
DIP-Switch

Energy

Power Supply
5V DC, 4A External Power Supply

Mitat ja Paino

Width
187,5 mm
Depth
115 mm
Height
25,4 mm
Net weight
0,5 kg

Additional information

Installation
19" Rack, 1U With RK-T2B-B Optional Rack Adapter
Installation
Freestanding/Shelf
Included Accessories
Power supply
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
342 x 60 x 174 mm
Paketin paino
967 g
