High–performance, highly–scalable, AVoIP Manager for configuration and monitoring of KDS–7 AVoIP deployments

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout

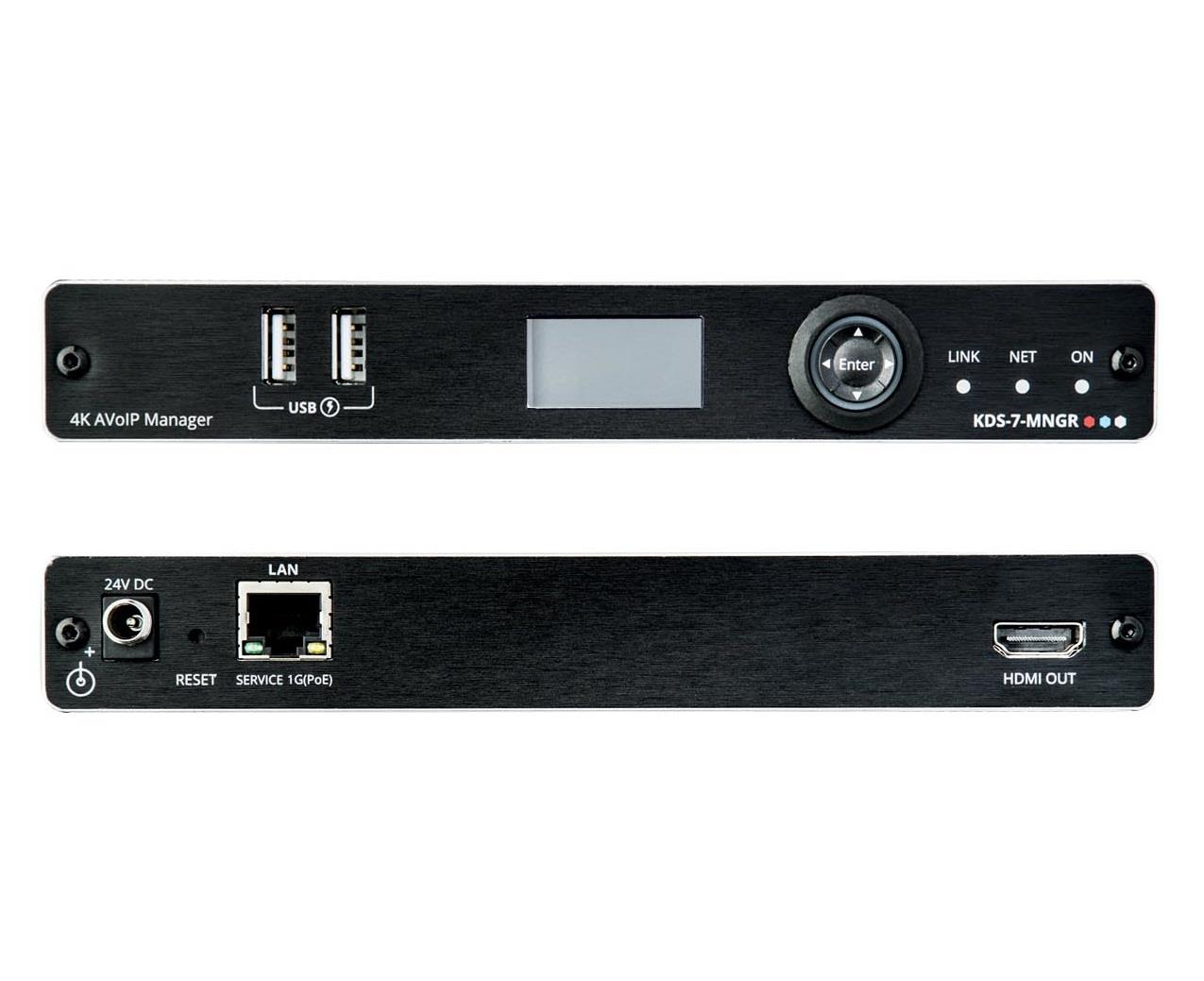

KDS−7−MNGR Manager is the solution for configuration and management of KDS−7 deployments within the same network. Simply install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages.

Additionally, this unit supports controlling and configuring the matrix, video wall, and KVM modes of connected KDS−7 devices as well as device grouping and group operations.

The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily updated.

Outstanding end–user experience

  • Instant auto–discovery and status with preview
  • Access via Remote Web UI or using local monitor with a USB keyboard and mouse

Ideal for large–scale deployments

  • Highly scalable — 999 channels build in support
  • Configuration of Virtual Video Matrix, KVM, and Video Walls
  • Configuration of Device Grouping, Preset Definition, and Activation via UI or APIs
  • Configuration — FW for single or group of devices

Robust security

  • Enterprise IT–grade security — 802.1x and HTTPS/TLS
  • Security certification — OWASP Top 10 certificate
  • Can be deployed in the same LAN used for AV data streaming or in a separate LAN

Simple planning and rollout

  • Cost–effective from day one
  • Full product range for any site, any application
  • Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

Applications:

  • For real–time essential installations such as command and control rooms
  • For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
  • AV distribution systems with one or more sources and many displays in schools, universities, and public venues
  • For AV installations where low latency KM/KVM capabilities are required


Resolution
1920x1080
Video out
HDMI x1
Refresh rate
60 Hz

General

Installation
19" Rack, 1U With optioal rack adapter

Connections

Control ports
Ethernet/IP (RJ-45) P3K API commands via Ethernet
Control ports
Front buttons, Web interface

Energy

Power Supply
PoE on LAN port or 24V DC External Power Supply

Mitat ja Paino

Width
189 mm
Depth
145 mm
Height
27,6 mm
Net weight
0,67 kg

Additional information

Warranty
7 vuotta

Paketin tiedot

Paketin mitat
314 x 182 x 81 mm
Paketin paino
870 g
