High–performance, highly–scalable, AVoIP Decoder for 4K60 4:2:0, HDR10 over 1G network

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout
  • Managed by KDS-7-MNGR

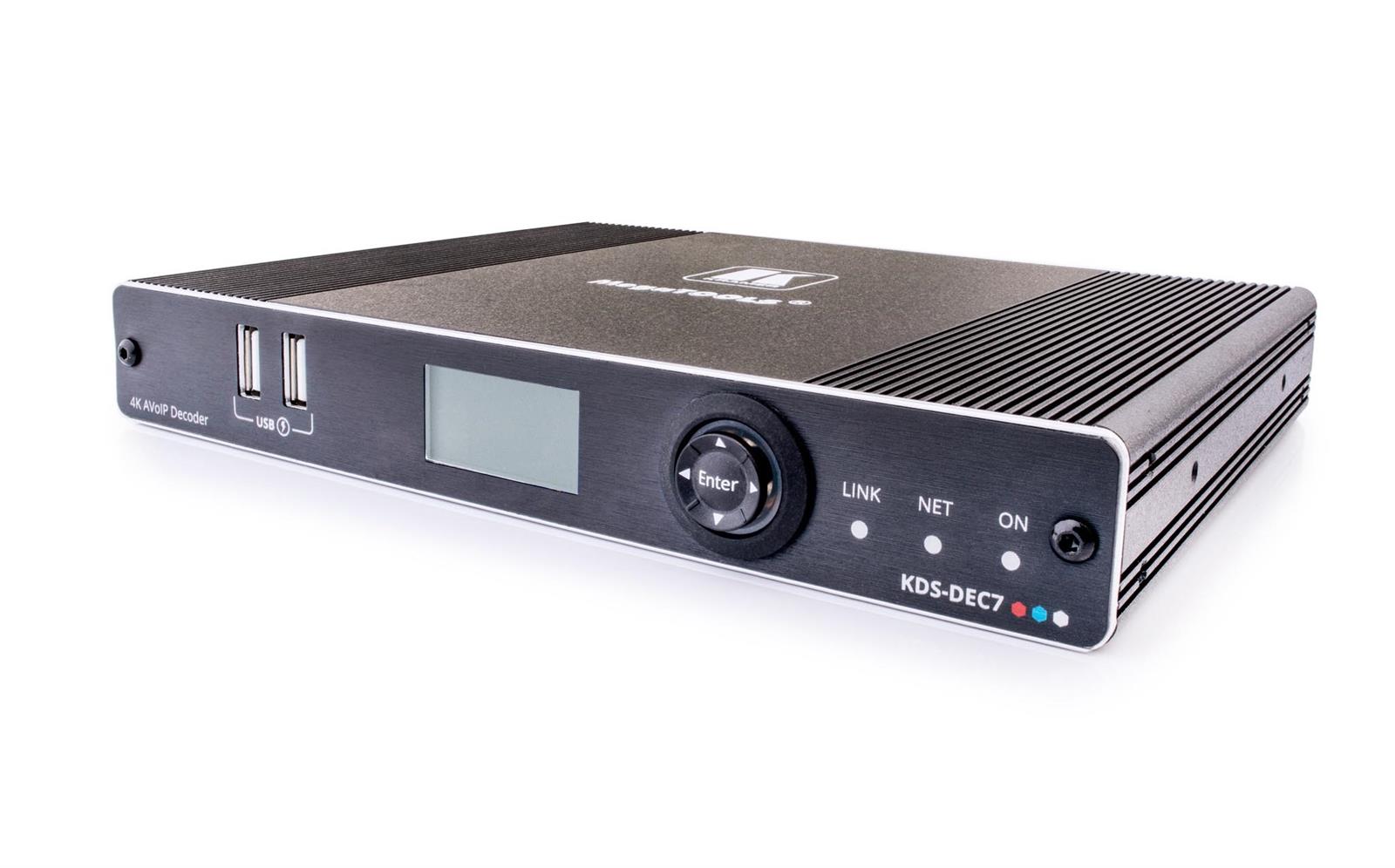

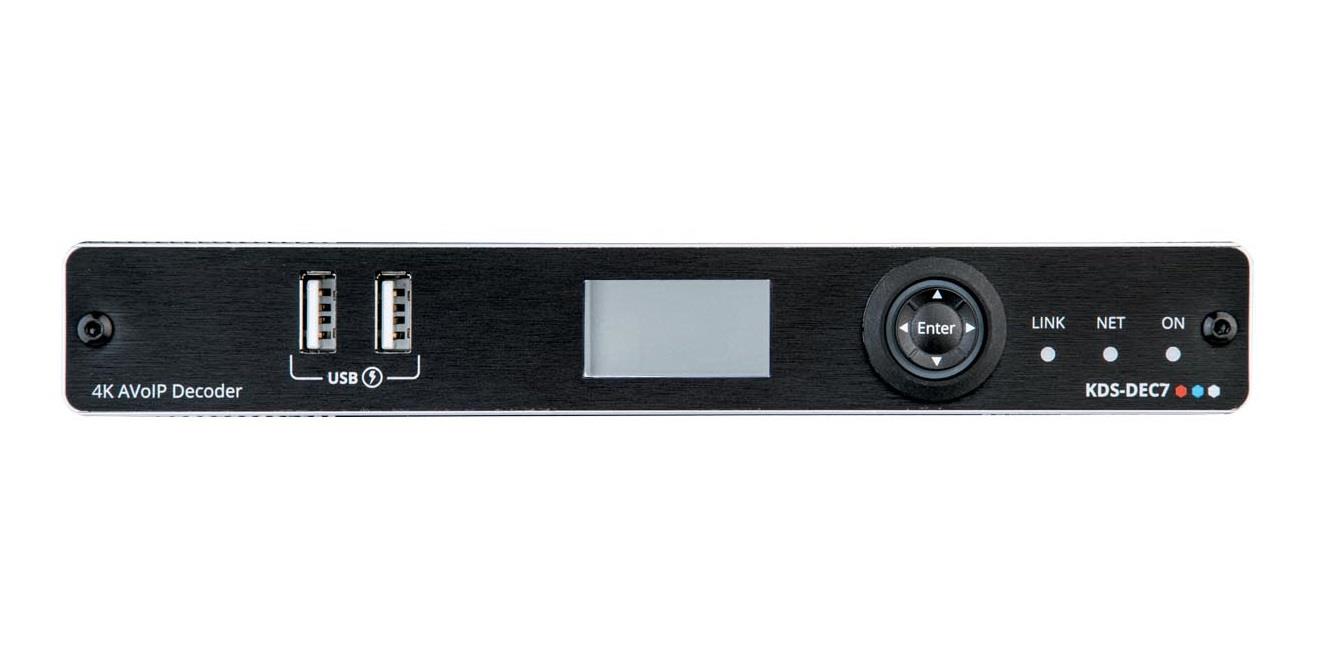

KDS−DEC7 decoder is an advanced receiver for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS232, or CEC signal over IP network.

Outstanding end–user experience

  • Rich set of inputs and interfaces
  • Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
  • Large scale video wall — up to 16x16
  • Instantaneous switching time — 1 second

Ideal for large–scale deployments

  • Highly scalable — 999 channels build in support
  • State of the art management device
  • Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration

Robust security

  • Enterprise IT–grade security — 802.1x and HTTPS/TLS
  • Security certification — OWASP Top 10 certificate
  • Separate ETH ports for optimal security and experience
  • New HW architecture that enables robust FW update

Simple planning and rollout:

  • Cost–effective from day one
  • Full product range for any site, any application
  • Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

PoE Support

  • Using PoE switch — up to 13W consumption

Alternative sources/destinations

  • HDMI Loop–Through on Encoder and HDMI Input on Decoder

Analog Audio

  • Embedding and De–embedding

**Control gateway **

  • Through P3K control/communicate with IR, RS232, or CEC to the connected devices

Applications:

  • For real–time essential installations such as command and control rooms
  • For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
  • AV distribution systems with one or more sources and many displays in schools, universities, and public venues
  • For AV installations where low latency KM/KVM capabilities are required


General

Extender type
Reciever (Rx)
Technology
JPG 2000

Video specifications

Max supported resolution
3840x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
Ei
Video operation modes
Videowall/Tileing Up to 16x16 displays

Connections

Video in
HDMI, IP stream (RJ-45)
Video out
HDMI With CEC
Audio outputs
Euroblock line 5-p Balanced Stereo Audio
Control
Ethernet/IP (RJ-45), Front buttons, IR cable connection, On-screen display, RS-232, Web interface
USB passthrough
Kyllä 2x USB-A (Device) for KM/KVM use

Communication

Switch Data Rate
1GbE
Req. Network Switch
1Gb Ethernet (PoE)

Energy

Power Supply
PoE on LAN port or 24V DC External Power Supply

Mitat ja Paino

Width
189 mm
Depth
145 mm
Height
27,6 mm
Net weight
0,7 kg

Additional information

Installation
19" Rack, 1U With optional rack adapter
Installation
Freestanding/Shelf
Included Accessories
2 Bracket sets, Quick start guide
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
320 x 180 x 70 mm
Paketin paino
900 g
