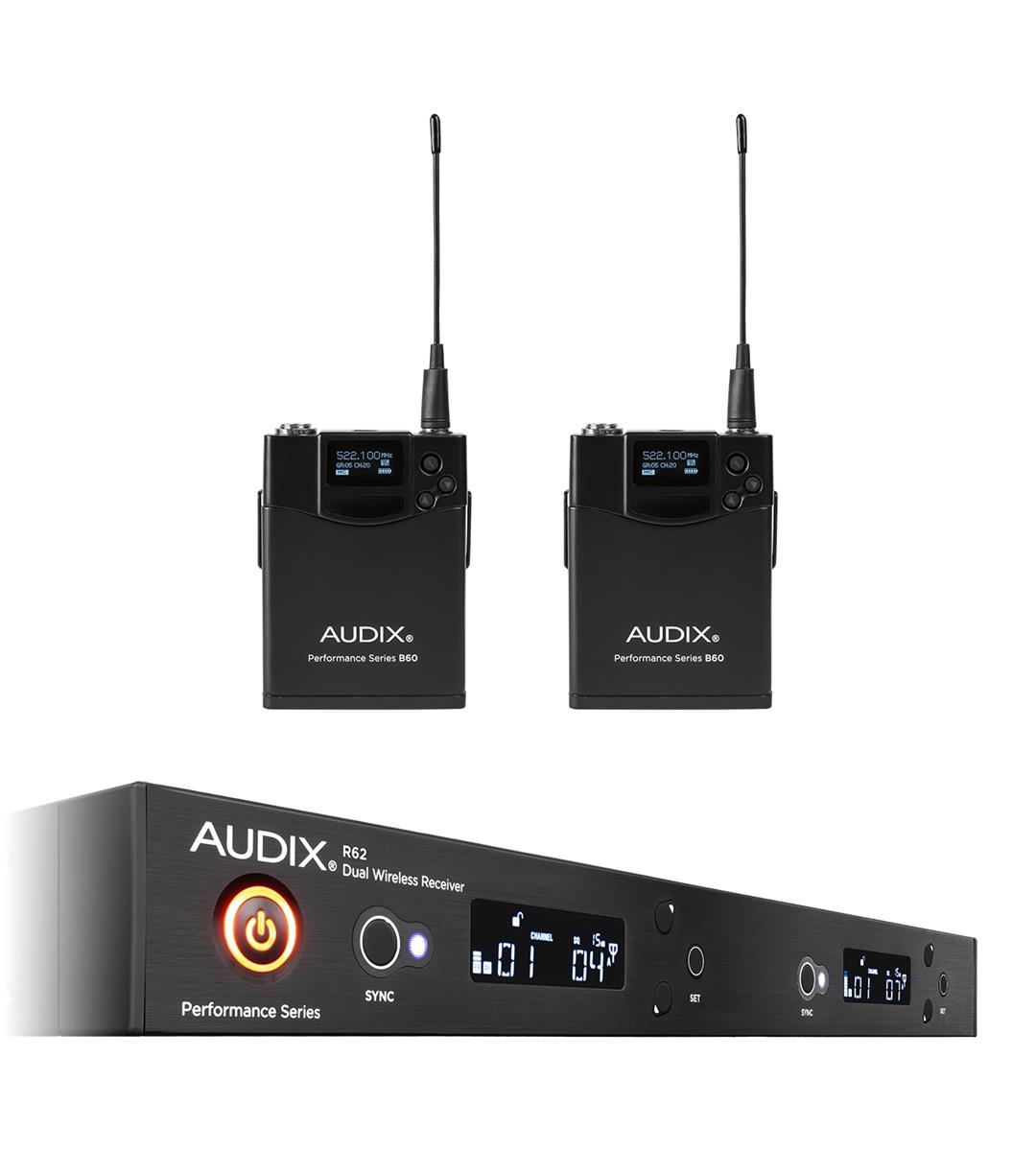

WIRELESS MICROPHONE SYSTEM – R62 TWO CHANNEL TRUE DIVERSITY RECEIVER WITH TWO B60 BODYPACK TRANSMITTERS
A professional true diversity lavalier wireless system featuring the B60 bodypack transmitter. B60 bodypack transmitter. This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution systems for up to four systems (8 channels).

FREQUENCY RANGE
522 MHz – 586 MHz

FEATURES

R62 Two-Channel True Diversity Receiver

  • 64 MHz Wide spectrum tuning receiver
  • 2560 Tunable frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam

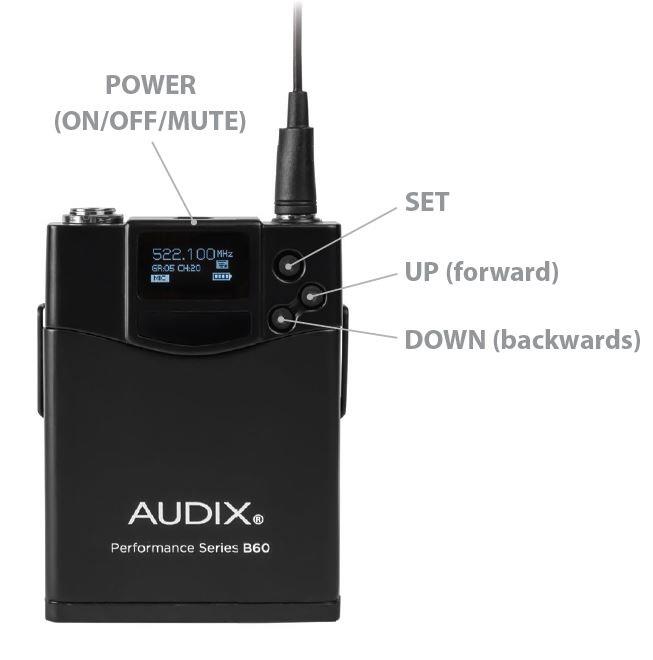

B60 Bodypack Transmitter

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 14 Hour run time – AA batteries


General

Microphone application
Beltpack transmitter x2

Connections

Audio outputs
6,3mm tele x2 (Unbalanced)
Audio outputs
XLR x2 (Balanced)

Wireless specification

Radio frequency
522 MHz - 554 MHz
Number of channels
2 pcs.
Simultaneous channels
12 pcs.
Wireless range
91 m

Energy

Power Supply
100 - 240V / 50 - 60 Hz, 12V DC, 1A
Battery
2x AA, 1,5V
Battery life
14 h

Mitat ja Paino

Width
205 mm Reciever
Depth
206 mm Reciever
Height
44 mm Reciever
Net weight
0,87 kg Reciever

Additional information

Included Accessories
R62 64 MHz Two-Channel True Diversity Receiver, 2x B60 Bodypack Transmitters, 2x Antennas, Audio Cable, 4x AA Batteries, Power Supply, User Guide, Rackmount Hardware, 2x BNC Cables
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
469 x 281 x 162 mm
Paketin paino
4,44 kg

Tarvikkeet

Artikkelinumero 2329802
