ADX10
WIRELESS COMPONENT CONDENSER VOCAL MICROPHONE

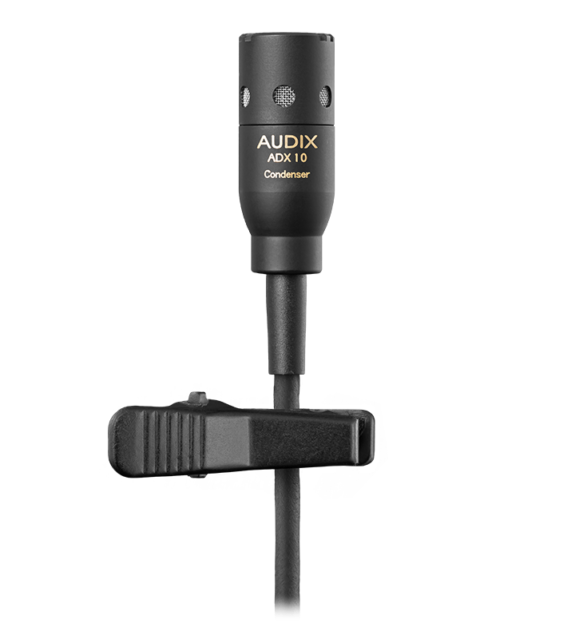

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4″- 8″. This mic is clear, resistant to feedback, and easy to use.

Designed with a uniformly controlled cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz – 18 kHz. This mic is lightweight, low profile, and has a natural sound with an exceptional sound response.

Primarily for use with Audix wireless systems, the ADX10 cardioid condenser microphone includes a tie-clip and a 3′ attached cable terminating to a mini-XLRf connector.

WHAT’S IN THE BOX?

  • 1x ADX10 Vocal Microphone
  • 1x MC10L tie clip
  • 1x WS10 external foam windscreen
  • 1x P1 carrying pouch

Transducer Type:Pre-polarized Condenser
Frequency Response: 50Hz – 18kHz
Polar Pattern: Cardioid
Output Impedance: 250 Ohms
Sensitivity: 5 mV/Pa @1k
Equivalent Noise Level: <29 dB (A-weighted)
Signal to Noise Ratio: >65 dB
Maximum SPL: ≥120 dB
Power Requirements: 9-52 V phantom
Connector: Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish: Machined Brass / Black Finish
Weight: 21 g / 0.74 oz
Length: 25 mm / .98 in



General

Microphone application
Lavalier

Audio specifications

Microphone type
Condensor
Directivity
Cardioid

Connections

Audio outputs
XLR

Paketin tiedot

Paketin mitat
115 x 223 x 68 mm
Paketin paino
163 g
