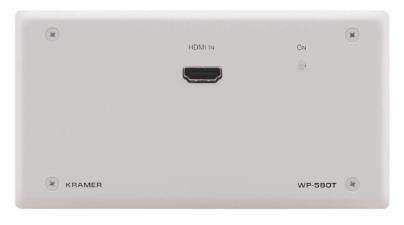

WP-580T/EU(W)-80
The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP−580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.
Key Features:
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· HDTV Compatible.
· HDCP Compliance.
· HDBaseT™ Technology.
· HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby
· TrueHD, DTS-HD, CEC.
· 3D Pass-Through.
· EDID PassThru - Passes EDID signals between the source and display.
· 2K & 4K Support.
· System Range - Up to 70m (230ft).
· Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
· Indicators - Status LEDs for input, output, link and power.
· Dimensions - 15.1cm x 2.96cm x 8.0cm, EU (W, D, H).
Allmänt
- Extender typ
- Sändare (Tx)
- Teknologi
- HDBaseT 1.0 Class B
- Räckvidd (Max)
- 70 m
Bild specifikation
- Max stödd upplösning
- 3840x2160 10.2Gbps (3.4Gbps per graphic channel)
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- Nej
Anslutningar
- Bildanslutning in
- HDMI
- Bildanslutning ut
- HDBaseT (RJ-45)
- USB passthrough
- Nej
Energi
- Strömförsörjning
- 5V DC External Pos, Consumption: 360mA
Mått och vikt
- Bredd
- 151 mm
- Djup
- 29,6 mm
- Höjd
- 80 mm
- Nettovikt
- 0,2 kg
Övrigt
- Montering
- Vägg
- Medföljande Tillbehör
- Power adapter
- Garanti
- 7 år
Förpackningsinfo
- Förpackningsstorlek
- 257 x 112 x 118 mm
- Förpackningsvikt
- 648 g
