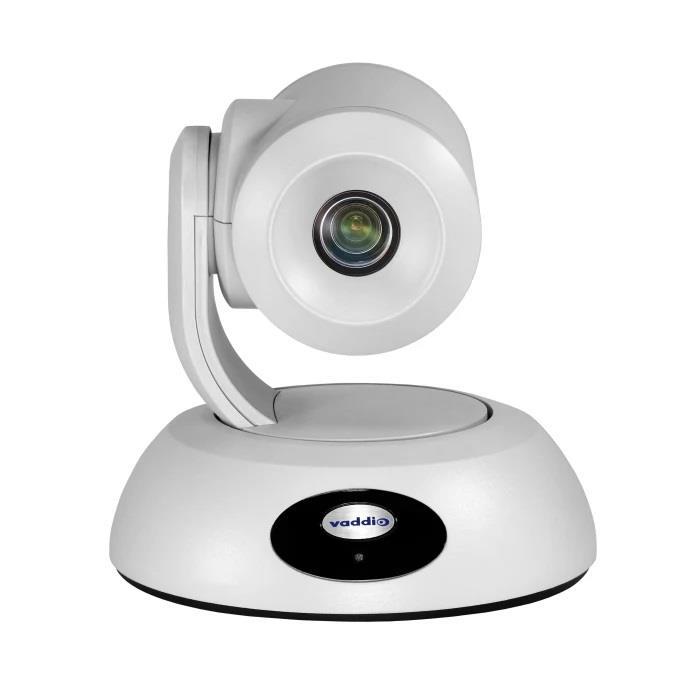

The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch – eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
Key Features:
- 20x Optical zoom
- 1/2.5-type Exmor R CMOS sensor
- 70.2° horizontal field of view
- One EasyIP (Network PoE+) and one HDMI video output
- Supports up to two EasyIP Mixers or Decoders simultaneously
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch – eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
In the box:
- EasyIP 20 Camera (black or white)
- Thin Profile Wall Mount with mounting hardware and installation guide
- Vaddio IR Remote Commander
- 3.05m cat-5e snagless cable, black
- Quick-Start Guide
General
- Camera type
- PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080 60Hz
- Optical zoom
- 20 x
- Field of view (horizontal)
- 70.2 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1.6 Lux 100+ lux recommended
- Min. working distance
- 229 mm
Functions
- Programmable presets
- Yes 16 + Custom Home Position
- Ceiling installation/Flip image
- Yes Up/Down (Flip image for ceiling installation)
- Pan movement +/-
- 150 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Connects to EasyIP decoder
- Built-in speaker
- No
- External speaker
- Yes Connects to EasyIP decoder

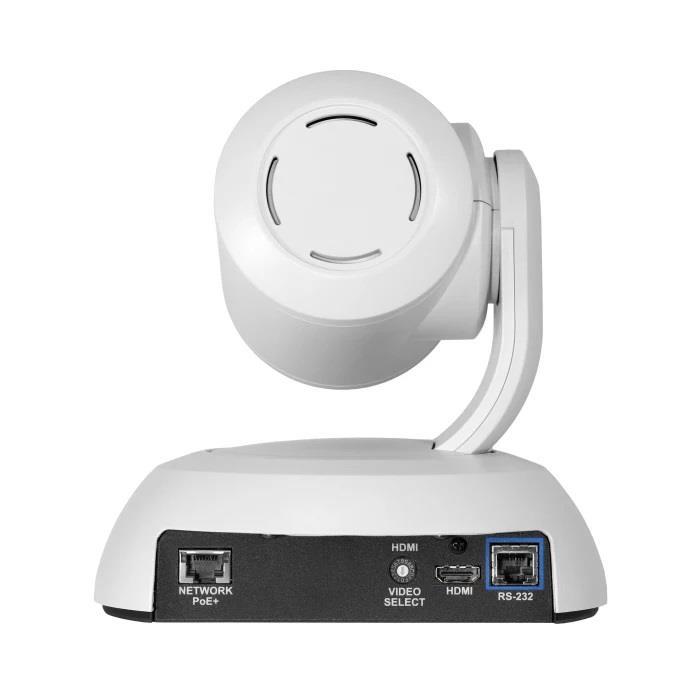

Connections
- Video out
- HDMI, IP stream (RJ-45)
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 154.9 mm
- Depth
- 139.7 mm
- Height
- 160 mm
- Net weight
- 1.36 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 2 years
Packaging info
- Packaging size
- 179 x 176 x 171 mm
- Packaging weight
- 2.20 kg
