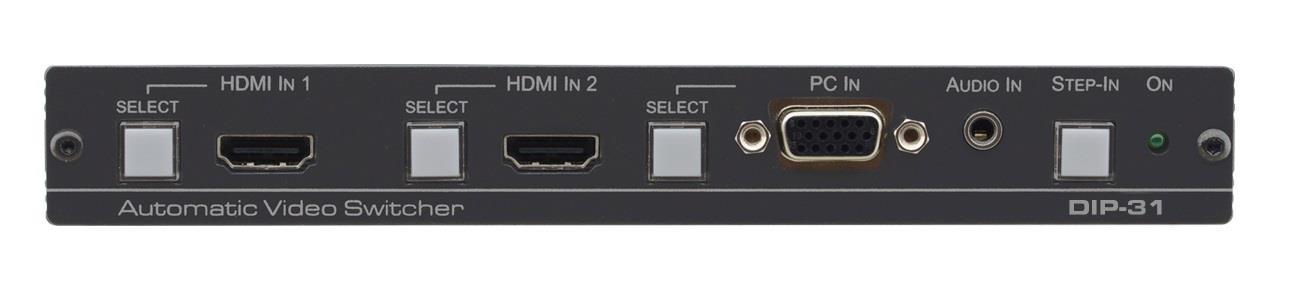

The DIP−31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS−62H or a display/projector). The device is a Step−in commander when connected to a matrix switcher that supports Step−in over HDMI such as the VS−62H. It also features RS−232 commands to support monitor/projector on/off.
Key Features:
· Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· HDTV Compatible.
· HDCP Compliant - With sources that support HDCP repeater mode.
· HDMI Support - Deep Color, x.v.Color™ and 3D.
· Automatic Live Input Detection - Based on video clock presence.
· Automatic Input Selection - Based on priority selection or last connected input.
· Manual Input Selection.
· Step-in Support.
· Automatic Analog Audio Detection & Embedding.
· Convenient Control - Via Kramer Protocol 3000 and embedded Web pages over a LAN.
· RS-232 Command Support.
· I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

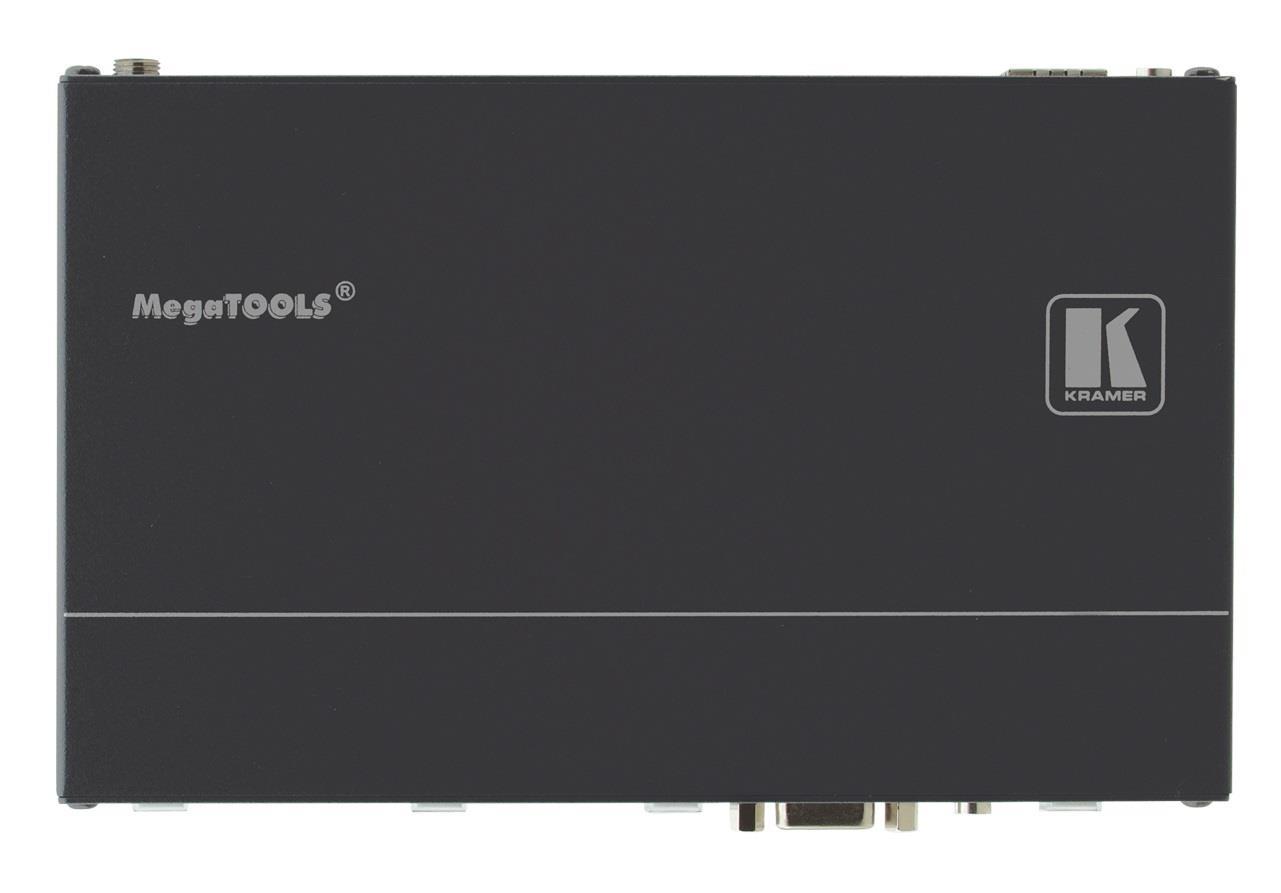

· Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Applications:
· Display systems requiring simple, automatic input selection
· Multimedia and presentation source selection
· Video distribution in hotel rooms and schools
General
- Application
- Switch Auto switching
Video specification
- Resolution max out
- 3840x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
Connections
- Video inputs
- 3
- Video outputs
- 1
- Video in
- HDMI x2
- Video in
- VGA x1
- Video out
- HDMI x1
- Audio inputs
- 3,5mm tele
- Audio outputs
- 3,5mm tele
Functions
- Scaler
- Ei
- USB passthrough
- Ei
- Control
- Auto-switching, Contact closure, Ethernet/IP (RJ-45), Front buttons, RS-232
Energy
- Power Supply
- 12V DC, 2A External Power Supply, Consumption: 600mA
Mitat ja Paino
- Width
- 187,5 mm
- Depth
- 115 mm
- Height
- 25,4 mm
- Net weight
- 0,4 kg
Additional information
- Installation
- 19" Rack, 1U With RK-T2B Rack adapter (optional)
- Installation
- Freestanding/Shelf
- Included Accessories
- Power adapter
- Warranty
- 7 vuotta
Paketin tiedot
- Paketin mitat
- 354 x 172 x 63 mm
- Paketin paino
- 935 g
