AVHub Meeting Audio & Video Processor

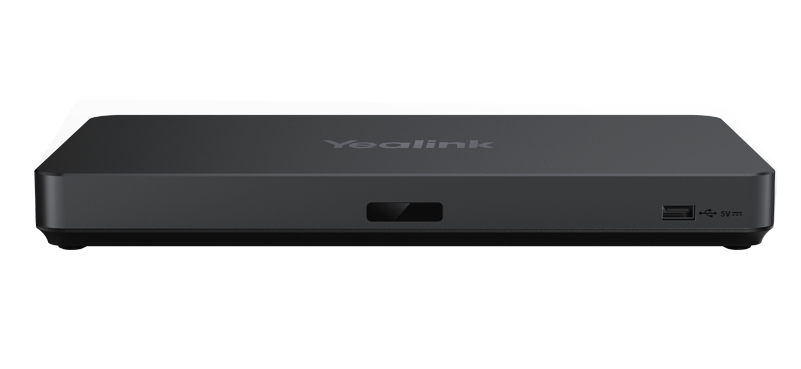

Yealink AVHub is a meeting audio and video processor used in large/extra-large conference rooms/conference fields. AVHub supports multi-camera, multi-microphone, and multi-speaker, and combined with audio and video processing capability, AVHub can release PC performance. In addition, cameras, microphones, and speakers can be directly connected to the AVHub through the network cable PoE, reducing wiring and managing video and audio equipment uniformly. Users can adjust the camera layout with the Yealink plug-in before or even in MTR meetings when using the AVHub.

Key Features and Benefits

  • Multi-camera Layout
  • Easy Deployment
  • BYOD
  • Audio & Video Processing Capability
  • Support up to 9 x UVC84/UVC86* (UVC86 support in Mar. 2022)
  • Support up to 8 x VCM34/VCM38 array microphones
  • Support up to 4 x MSpeaker II
  • Broadly compatible with third-party DSP

AI-Enabled Chipset, Infinite Possibilities for Future Applications

Yealink AVHub can be used with multiple UVC84s to provide a multi-camera video conferencing solution with the feature of the camera. Equipped with a powerful AI-enabled chipset, AVHub, as one important role in the conference room setup, empowers the new MVC940 with AVHub bundle great scalability in future applications including together mode in Microsoft Teams. The AVHub enables direct audio and video processing, reducing the operational burden of Mcore in the whole video conferencing system.

AVHub Ports
2 x USB-A Port
1 x USB-B Port
1 x Codec Port
7 x VCH Port (RJ-45)
1 x RCA in/out Port
1 x 6.3mm Line in Port
1 x 6.3mm Line out Port
1 x Power Supply Port



Lisäinformaatio

Included Accessories
1x AVHub Meeting AV Processor, 1x 7.5m CAT5E cable, 1x 2.5m USB cable, 1x Power Adapter
Warranty
2 vuotta

Paketin tiedot

Paketin mitat
394 x 225 x 124 mm
Paketin paino
2,76 kg
