PT−580T is a compact high−performance, long−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI signal over twisted pair. PT−580T converts the input signal into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Key Features:
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. PT–580T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- HDMI Signal Extension — HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Maintenance — Status LED indicator facilitates easy local maintenance and troubleshooting.

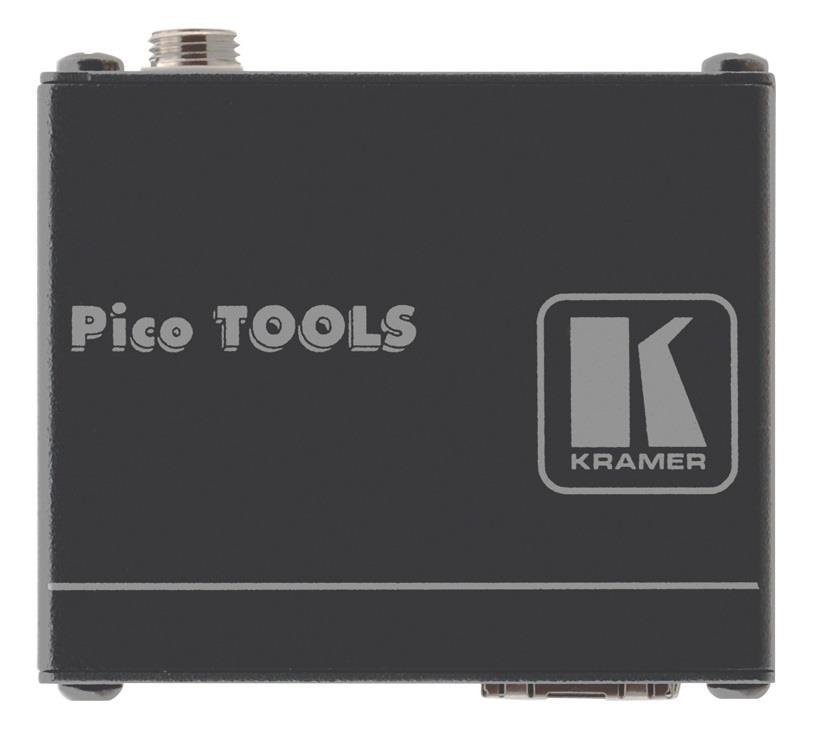

- Easy Installation — Compact Pico TOOLS™ fan–less enclosure for dropped–ceiling or discreet mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.
Applications
- Long–distance AV signal extension for multi–room, large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
Allmänt
- Extender typ
- Sändare (Tx)
- Teknologi
- HDBaseT 1.0 Class B
- Räckvidd (Max)
- 70 m at 1080p 60Hz, 40m at 4K 60Hz
Bild specifikation
- Max stödd upplösning
- 3840x2160 Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- Nej

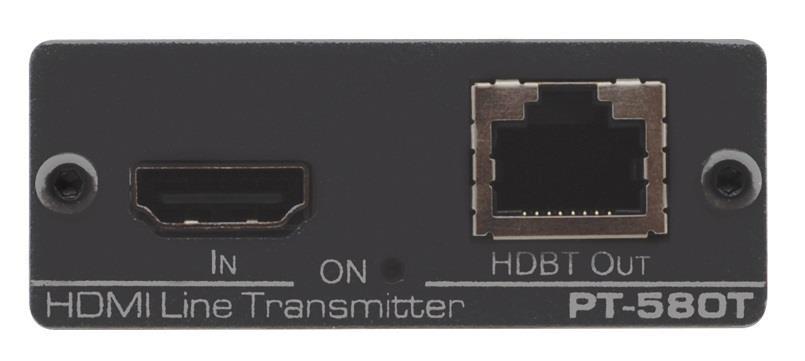

Anslutningar
- Bildanslutning in
- HDMI
- Bildanslutning ut
- HDBaseT (RJ-45)
- USB passthrough
- Nej
Energi
- Strömförsörjning
- 5V DC, 2A External Power Supply
Mått och vikt
- Bredd
- 62 mm
- Djup
- 52 mm
- Höjd
- 24 mm
- Nettovikt
- 0,1 kg
Övrigt
- Montering
- 19" Rack, 1U With RK-4PT rack adapter (optional)
- Montering
- Fristående/Hylla
- Medföljande Tillbehör
- Power supply unit
- Garanti
- 7 år
Förpackningsinfo
- Förpackningsstorlek
- 161 x 124 x 91 mm
- Förpackningsvikt
- 513 g
